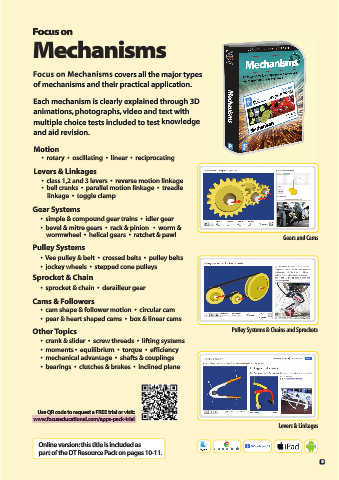

Focus on

Mechanisms

Focus on Mechanisms covers all the major types
of mechanisms and their practical application.

Each mechanism is clearly explained through 3D
animations, photographs, video and text with
multiple choice tests included to test knowledge
and aid revision.

Motion
• rotary • oscillating • linear • reciprocating

Levers & Linkages
• class 1,2 and 3 levers • reverse motion linkage
• bell cranks • parallel motion linkage • treadle
linkage • toggle clamp

Gear Systems
• simple & compound gear trains • idler gear
• bevel & mitre gears • rack & pinion • worm &
wormwheel • helical gears • ratchet & pawl
Gears and Cams
Pulley Systems
• Vee pulley & belt • crossed belts • pulley belts
• jockey wheels • stepped cone pulleys
Sprocket & Chain
• sprocket & chain • derailleur gear

Cams & Followers
• cam shape & follower motion • circular cam
• pear & heart shaped cams • box & linear cams

Other Topics Pulley Systems & Chains and Sprockets
• crank & slider • screw threads • lifting systems
• moments • equilibrium • torque • efficiency
• mechanical advantage • shafts & couplings
• bearings • clutches & brakes • inclined plane
